PİC Proje Hakkında

immortall

Üye
Katılım
10 Eki 2018
Mesajlar
72
Puanları
1
Yaş
28
Arkadaşlar internetten işime yarayacak bir proje buldum. 1 numaralı resimdeki devreyi 2 deki gibi proteusta kurdum. Fakat aşağıdaki gibi bir hata veriyor hatanın sebebi nedir acaba? Yardımcı olursanız sevinirim. CCS C kodları aşağıdaki gibi. Teşekkürler.

Kod:
#include <yedek_solar.h>
#include <LCD420.c>

// ConnectionsModuleLCD
#define LCD_RS_PIN PIN_E0
#define LCD_ENABLE_PIN PIN_E2
#define LCD_DATA4 PIN_D4
#define LCD_DATA5 PIN_D5
#define LCD_DATA6 PIN_D6
#define LCD_DATA7 PIN_D7
//End ConnectionsModuleLCD
#define ON_OFF PIN_C7
#define BOUTON PIN_C0
#define BOUTON_ON input_state(PIN_C0)==0
#define Choice_bat_ON input_state(PIN_C1)==0
#define LED_RED PIN_C3
#define LED_YELLOW PIN_C4
#define LED_GREEN PIN_C5
#USE PWM(OUTPUT=PIN_C2, FREQUENCY=50kHz, DUTY=100)
float Voltage_pv;
float Voltage_bat;
float Current_pv;
float Current_bat;
float Current_ch;
float Temperature;
float Voltage_absorption;
float Voltage_float;
float alpha;
int duty;
char choice_bat;
const int8 Imin = 1;
void DisplayFormat(void) {
if(BOUTON_ON){
lcd_putc('\f'); //Clear LCD Screen
printf(lcd_putc,"Upv = %f V",Voltage_pv);
lcd_gotoxy(1,2);
printf(lcd_putc,"Ubat = %f V",Voltage_bat);
lcd_gotoxy(1,3);
if(Current_bat>=0){
printf(lcd_putc,"Ibat = %f A +++",Current_bat);}
if(Current_bat<0){
Current_bat = - Current_bat;
printf(lcd_putc,"Ibat = %f A ---",Current_bat);}
lcd_gotoxy(1,4);
printf(lcd_putc,"Temp = %f C",Temperature);
Delay_ms(2000);}
else{
lcd_putc('\f'); //Clear LCD Screen
printf(lcd_putc,"Ipv = %f A",Current_pv);
lcd_gotoxy(1,2);
printf(lcd_putc,"Icharge = %f A",Current_ch);
lcd_gotoxy(1,3);
printf(lcd_putc,"alpha = %f%%",alpha*100);
lcd_gotoxy(1,4);
lcd_putc("Frequency = 50kHz");
Delay_ms(2000);}
}
void Mesure(void) {
set_adc_channel(2);
Delay_ms(10);
Voltage_bat = read_adc();
Delay_ms(10);
Voltage_bat = (Voltage_bat/1023)*5*6;
set_adc_channel(0);
Delay_ms(10);
Voltage_pv = read_adc();
Delay_ms(10);
Voltage_pv = (Voltage_pv/1023)*5*4;
set_adc_channel(3);
Delay_ms(10);
Voltage_bat = read_adc();
Delay_ms(10);
Current_bat = (Current_bat/1023)*5;
Current_bat = 10*Current_bat-25;
set_adc_channel(1);
Delay_ms(10);
Current_pv = read_adc();
Delay_ms(10);
Current_pv = (Current_pv/1023)*5;
Current_pv = 10*Current_pv-25;
set_adc_channel(4);
Delay_ms(10);
Temperature = read_adc();
Delay_ms(10);
Temperature = (Temperature/1023)*5;
Temperature = Temperature*12.5;
Voltage_absorption = (14.5-0.03*(Temperature-25))*choice_bat;
Voltage_float = (13.6-0.03*(Temperature-25))*choice_bat;
Current_ch = Current_pv - Current_bat;
}
void main()
{
setup_adc(ADC_CLOCK_INTERNAL);
setup_adc_ports(AN0_AN1_AN2_AN3_AN4);
set_tris_a(0xFF);
set_tris_c(0b00000011);
lcd_init();
Delay_ms(100);
while(TRUE)
{
if (Choice_bat_ON){
choice_bat=1;
}
else {
choice_bat=2;
}
lcd_putc('\f');
Mesure();
Delay_ms(500);
while(Voltage_bat <= (Voltage_absorption) &&Voltage_bat>=
(12.6*choice_bat) ) {
lcd_putc('\f');
Mesure();
output_high(ON_OFF);
output_low(LED_YELLOW);
output_low(LED_GREEN);
output_high(LED_RED);
alpha=1;
pwm_on();
duty = 1000*alpha;
pwm_set_duty_percent(duty);
//Viewing
DisplayFormat();
}
lcd_putc('\f');
//Mesure();
while(Current_bat >= Imin && Voltage_bat>= (12.6*choice_bat)) {
lcd_putc('\f');
Mesure();
Voltage_bat = Voltage_absorption;
alpha = Voltage_bat/Voltage_pv;
output_low(LED_RED);
output_low(LED_GREEN);
output_high(LED_YELLOW);
pwm_on();
duty = 1000*alpha;
pwm_set_duty_percent(duty);
DisplayFormat();
Mesure();
}
Mesure();
Delay_ms(500);
lcd_putc('\f');
while(Voltage_bat >= (12.6*choice_bat)) {
lcd_putc('\f');
Mesure();
Voltage_bat = Voltage_float;
alpha = Voltage_bat/Voltage_pv;
output_low(LED_YELLOW);
output_low(LED_RED);
output_high(LED_GREEN);
pwm_on();
duty = 1000*alpha;
pwm_set_duty_percent(duty);
//Viewing
DisplayFormat();
Mesure();
}
lcd_putc('\f');
if(Voltage_bat < (12.6*choice_bat)) {
output_low(ON_OFF);
alpha=1;
pwm_on();
duty = 1000*alpha;
pwm_set_duty_percent(duty);
lcd_putc('\f'); //Clear LCD Screen
lcd_putc("Excessive discharge");
lcd_gotoxy(1,2);
lcd_putc("Load disconnected");
Mesure();
output_high(LED_YELLOW);
output_high(LED_GREEN);
output_high(LED_RED);
Delay_ms(250);
output_low(LED_YELLOW);
output_low(LED_GREEN);
output_low(LED_RED);
Delay_ms(250);
}
}
}


Ekli dosyalar

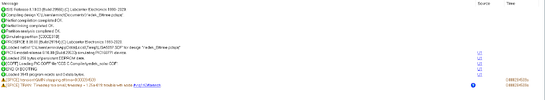

  • 1.PNG
    179.4 KB · Görüntüleme: 22
  • 2.PNG
    175.8 KB · Görüntüleme: 21
  • hata1.PNG
    25.3 KB · Görüntüleme: 18
istersen kurduğun devredeki osilatör devresinde bulunun kristal değerini bir kontrol et ve pic için ayarlardan dahili osilatör varsa eğer pic'inde onu mu kullanacağını yoksa harici osilatör mü kullanacağının ayarlarını kontrol et istersen sanırım aşırı hızdan dolayı kontrolsüzlük ortaya çıkıyor.
